Pneumatisches Wegeventil Waircom UKCA8

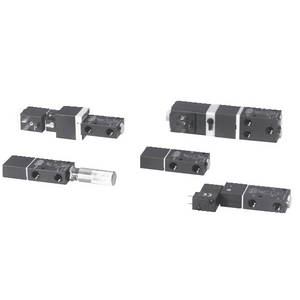

Valves series “UK” are produced in the 2/2, 3/2 and 5/2 monostable pneumatic functions. In the 3 port solenoid control version with small pilot system, sizes G 1/8 and G 1/4, support the 15 mm direct acting solenoid valve (type UMCSV with fixed position). All the other electric versions can support the 32 mm direct acting solenoid valve, type ULCSV/R (with fixed position), type C/USCSVG with sleeve Ø 9 mm (with fixed position and rotatable coils series USB and USBG) or the amplifier valve XVF4 for a sensible pneumatic piloting (see page 3.37). The 3/2 N.C. pilot actuated valves can also be used to switch vacuum thanks to a suitably reinforced spring. The poppet design assures high flow and high life. This series of valves, in the sizes G 1/8, G 1/4 and G 1/2, is prearranged for base mounting with conveyed inlet by means of rear notch screws. Upon request they comply with ATEX directive: 2GD category for pilot and solenoid actuated valves with coil type “USBG2” and 3GD category for the solenoid actuated valves with other coils type.
