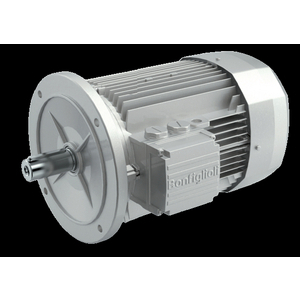

8J0103000U-MOTORE BE 71B 4 AUTOFRENANTE KW 0,37 4P B14 IEC71B 3PH 230/400V 50HZ IP54 CLF IE2 BE FD 5 NB 230

Versions with incorporated brake use spring-applied DC (FD option) or AC (FA options) brakes. All brakes are designed to provide fail-safe operation, meaning that they are applied by spring-action in the event of power failure. When voltage is interrupted, pressure springs push the armature plate against the brake disc. The disc becomes trapped between the armature plate and motor shield and stops the shaft from rota-tion. When the coil is energized, a magnetic field strong enough to overcome spring action attracts the armature plate, so that the brake disc – which is integral with the motor shaft – is released
