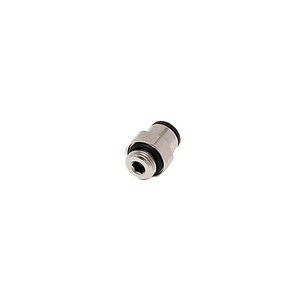

Raccordo ad innesto rapido Dritto Parker Legris 3101 06 13
3101 06 13
Riferimenti
parker legris:3101 06 13
rubix:160000001717544
ean:0820099206004
Riepilogo info tecniche
| Diametro del collegamento | G 1/4 '' |
|---|---|
| Diametro esterno del tubo metrica | 6 mm |
Dettagli del prodotto : 3101 06 13
La gamma di raccordi pneumatici LF 3000®, con la sua ampia varietà di forme e configurazioni, consente di trovare il connettore perfetto per soddisfare le proprie esigenze e pertanto ottimizzare l'utilizzo dell'apparecchiatura.Il raccordo a innesto è il modo più intuitivo per collegare tubi a un raccordo al fine di creare una rete di distribuzione dei fluidi. Grazie alla sua facilità di montaggio, versatilità e durata eccezionale, il raccordo a innesto contribuisce a migliorare l’efficienza della macchina.
Punti di forza
• Extreme Durability for Optimum Profitability
• 40 years of expertise
• Conforms to ISO 14743
• Ideal for vacuum or pressure applications
• Tried-and-tested longevity according to DI 2006/42/CE requirements
• Materials with high resistance
• Durability of product and equipment• Maximum Machine Efficiency
• 100% leak-tested in production
• Full bore for optimum flow
• Tube fixed during connection, preventing leakage
• Excellent vacuum performance thanks to the patented sealing technology• Productivity & Maintenance Improvement
• Compact and aesthetic design: reduced dimensions for space-saving
• Lightweight: reduced energy consumption of operating systems
• Parallel threaded fitting with a patented captive O-ring seal
• Maximum flexibility due to the wide product range
• Date coding to guarantee quality and traceability
• Automatic sealing guaranteed, in both static and dynamic applications
• 40 years of expertise
• Conforms to ISO 14743
• Ideal for vacuum or pressure applications
• Tried-and-tested longevity according to DI 2006/42/CE requirements
• Materials with high resistance
• Durability of product and equipment• Maximum Machine Efficiency
• 100% leak-tested in production
• Full bore for optimum flow
• Tube fixed during connection, preventing leakage
• Excellent vacuum performance thanks to the patented sealing technology• Productivity & Maintenance Improvement
• Compact and aesthetic design: reduced dimensions for space-saving
• Lightweight: reduced energy consumption of operating systems
• Parallel threaded fitting with a patented captive O-ring seal
• Maximum flexibility due to the wide product range
• Date coding to guarantee quality and traceability
• Automatic sealing guaranteed, in both static and dynamic applications
Applicazioni
• Factory Automation
• Vehicule Assembly Facilities
• Food and Beverage
• Semiconductor
• Wearing Apparel
• Packaging Machinery
• Pneumatic Machinery Equipment
• Low Pressure Compressed Air Conveying
• Suitable for Vaccum Applications
Informazioni tecniche
Attributi
| Diametro del collegamento | G 1/4 '' |
|---|---|
| Diametro esterno del tubo metrica | 6 mm |
| Lunghezza | 18 mm |
| Tipo di filettatura | Filetto maschio |
| Temperatura massima | 80 °C |
| Temperatura minima | -20 °C |
| Materiale | Ottone placcato al nickel |
| Codice doganale | 73079980 |
Mostra UNSPSC / ECL@SS
€ 2,34 IVA esclusa
/ Unità
€ 2,85 IVA inclusa
Accedi/registrati per visualizzare i tempi di spedizione
