Riferimenti
SMC:MXS12L-40
Rubix:999221025039450
EAN:3618036339710
Documenti

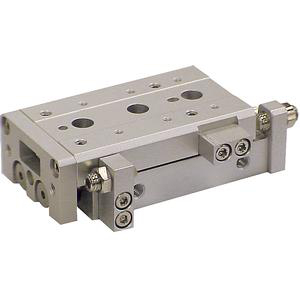

Dettagli del prodotto : 00131559-ARTICOLO MXS12L-40
Applications that call for precise movement ranging from 10-150mm (1/2-6") typically require a cylinder and a precision guide. The MXS accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. The MXS is available in six sizes each with set stroke lengths and is standard with auto switch capability. Stroke adjustments are available for extend, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. In addition, there are many other standard options that include, shock absorbers, end lock, axial piping, and buffer.
MXSL, tavola di scorrimento pneumatica (simmetrica)
Punti di forza
Air slide table
Bore size: 6, 8, 12, 16, 20, 25
Strokes: 5mm to 150mm, depending upon bore size
With or without stroke adjuster with or without shock
Options: buffer, end lock, axial piping
Variety of switches with a variety of wire lead lengths
Bore size: 6, 8, 12, 16, 20, 25
Strokes: 5mm to 150mm, depending upon bore size
With or without stroke adjuster with or without shock
Options: buffer, end lock, axial piping
Variety of switches with a variety of wire lead lengths
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 92x50x32 mm |
|---|---|
| Peso | 385 g |
| Tipologia | mxs |
| Diametro mandrino | 12 mm |
| Paese d'origine | JP |
Mostra UNSPSC / ECL@SS
€ 440,09 IVA esclusa
/ Unità
€ 536,91 IVA inclusa
Accedi/registrati per visualizzare i tempi di spedizione
