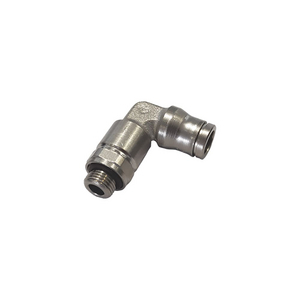

EXT'D STUD ELBOW 4MMXM5 3669 04 19

In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.

PRODUCT ADVANTAGES:

> High Performance
- Resistant up to +150°C at 30 bar
- Excellent mechanical performance
- Long threads to resist shock and vibration
- Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
- Full flow, minimal pressure drop

> Versatility
- Materials conform to FDA standards
- Spring collet gripping system suitable for both metal(grooved) and polymer tubing
- Excellent resistance to high pressure and vacuum
- Excellent chemical compatibility
- More than 250 part numbers
- One fitting for numerous applications: stock optimisation
- Manual connection and disconnection
- Compact and ergonomic

> Reliability
- High performance brass for increased lifespan
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

PRODUCT TYPES:
- Stud Fittings
- Stud Standpipe
- Cartridge
- Stud Elbow
- Extended Stud Elbow
- Compact Elbow
- Stud Branch Tee
- Stud Run Tee
- Single Banjo
- Tube-To-Tube Fittings
- Equal Tube-To-Tube Connector
- Equal Elbow
- Equal Tee
- Bulkhead Connector Fittings
- Equal Bulkhead Connector
- Bulkhead Connector
- Equal Bulkhead Elbow
- Plug-In Reducer
- Plug-In Adaptor
- Plug-In Increaser
- Plug-In Barb Connector
- Stem Connector
- Blanking Plug
- Disconnection Tool
- Release Button Covers

APPLICATIONS:
- Food Process
- Coffee Machines
- In-Plant Automotive
- Medical Equipment
- Printing
- Misting
- Welding Robots

TECHNICAL CHARACTERISTICS:
- Fluids: Compressed Air, Grease, Lubricant, Water
- Materials: Chemical nickel-plated brass, FKM
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
- Ø metric: 4-14 mm

REGULATIONS:
>Industrial
- ISO 14743: pneumatic transmissions, push-in fittings for thermoplastic tubing
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- RG: 1907/2006 (REACH)
- DI: 94/9/EC (ATEX )
- UL94 V-0: please consult us
>Food
- RG: 21CFR (FDA)
- RG: 1935/2004/EC (minimum fl ow 0.02 l/h)
- USDA NSF H1: grease
- ASTM B733-04: autocatalytic (electroless) nickel-phosphorus coatings

Technologies:
- Stud Fittings
- Tube-to-Tube Fittings
- Bulkhead Connectors
- Push-In Fittings
- Nickel-Plated Brass Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings

Applicazioni: Trasformazione alimentare, In-Plant Automotive, Apparecchiature mediche, Stampa, Nebulizzazione, Robot di saldatura
Materiale corpo: Ottone
Materiale del corpo: Ottone, nichelato chimico FDA
Marchio: Parker, Legris
Rivestimento: Nichelato chimico FDA
Configurazione: Da tubo a porta
Dimensione attacco 1: 4 mm (O.D.)
Tipo attacco 1: Tubo
Tipo di connessione 2: M5x0,8
Tipo di connessione 2: Maschio metrico
Dimensione raccordo 3: n/a
Tipo raccordo 3: n/a
Divisione: Connettori a bassa pressione Divisione Europa
Per tipo di fluido: Aria (aria compressa), lubrificanti (grasso), acqua
Industria: Apparecchiature per la produzione industriale, Scienze della vita
Pressione massima di esercizio: 30
Temperatura massima di esercizio: 150
Temperatura minima di esercizio: -25
Stile del prodotto: Raccordi a vite - regolabili estesi
Tipo di prodotto: Raccordi a pressione
Quantità per scatola: 10
Materiale di tenuta: FKM
Forma: Gomito 90°
Specifiche Met: PED, RoHS, REACH, ATEX DI: 94/9/CE, UL 94 V-0 (consultateci), FDA 21 CFR (Food), EC RG: 1935/2004
Tecnologia: Trattamento di fluidi e gas
Pressione di vuoto: 755
Peso: 0,014
