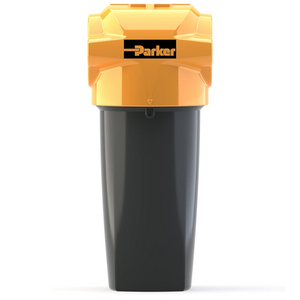

OIL-X COMP. AIR FILTER AOPX030GGFX

The Parker OIL-X range of die-cast compressed air filters has been designed from the outset to meet the air quality requirements of all editions of ISO8573-1, when validated in accordance with the stringent requirements of ISO12500-1.

An efficient and cost effective manufacturing process is a major factor in maintaining the profitability and growth of your business. Designed using domnick hunter filtration technology, OIL-X filters are designed to not only minimise the use of compressed air and electrical energy in their operation, but also to significantly reduce the operational costs of the compressor by minimising pressure losses.

OIL-X filters incorporate a number of unique and patented design features to minimise differential pressure and provide a filter and element combination where the differential pressure starts low and stays low to maximise energy savings and provide the lowest lifetime costs without compromising air quality.

Features
• For the removal of bulk liquid, water and oil aerosols, atmospheric dirt and solid particles, rust, oil vapour, pipescale and micro-organisms

• Coalescing filter performance tested to the stringent requirements of ISO12500-1, ISO8573-2 and ISO8573-4

• Dry particulate filter performance tested in accordance with the requirements of ISO8573-4

Benefits
• Highest air quality

• Lowest operational differential pressure

• Lowest energy consumption

• Lowest CO2 emissions

• Lowest total cost of ownership

Sizing and Selection
To ensure quoted air purity specification is met, more than one filtration grade may be required.

Important Note: For quoted air purity performance, compressed air filters must be sized correctly for minimum operating pressure and maximum inlet flow rate using the correction factors found in the Product Information Sheet.

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

Applicazione: Apparecchiature di produzione industriale
Alimenti e bevande
Automotive
Elettronica
Farmaceutica
Medicale e dentale
Marchio: Parker
Elemento compatibile: P030AO
Tipo di connessione: BSPP
Profondità: 115,0, 4,53
Divisione: Divisione filtrazione e separazione gas EMEA
Scarico: Galleggiante automatico
Intervallo di sostituzione dell'elemento: 12 mesi
Efficienza del filtro: 99,925
Tipo di filtro: Uso generale a coalescenza
Altezza: 367,0, 14,45
Materiali di costruzione: Alluminio pressofuso
Portata massima: 396 m³/h a 7 barg (233 cfm a 102 psig)
Flusso massimo: Fino a 1 micron
Pressione di esercizio: da 1,5 a 16, da 22 a 232
Temperatura di esercizio: da 2 a 80, da 35 a 176
Dimensioni porte: 1½ pollice
Differenziale di pressione: 90,0 mbar iniziale saturo, 100% flusso, 1,3 psi iniziale saturo, 100% flusso
Serie di prodotti: OIL-X Grado AO
Tipo di prodotto: Filtro per aria compressa
Contenuto di olio residuo: 0,5 mg/m³ / 0,5 ppm(w)
a 21°C (70°F)
Specifiche Met: Completamente testato - In conformità con ISO12500-1 / ISO8573-2 per l'aerosol di olio e ISO8573-4 per il particolato.

Prestazioni di filtrazione convalidate in modo indipendente - da Lloyds Register.

PED 2014/68/EU Gruppo Fluido II.
Tecnologia: Filtrazione
Peso: 3.01, 6.63
Larghezza: 120.0, 4.72
