Riferimenti
Gates:SPB8500/5V3350 SUPERHC
Rubix:999190400010712
Produttore:933908500
EAN:5400608076004
Riepilogo info tecniche
| Profilo | spb |
|---|---|
| Larghezza superiore | 16 mm |
| Lunghezza di orientamento | 8500 mm |

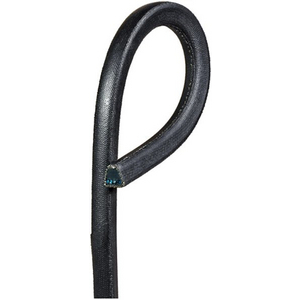

Dettagli del prodotto : 9339-08500 CINGHIA TRAPEZOIDALE SPB8500/5V3350 SUPERHC
The Gates Super HC V-belt combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. It transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC V-belts also have exclusive Gates construction features for longer life on your drives!
Punti di forza
- Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service and reduced pulley wear.
- The Flex-Weave oil and heat resistant cover protects the belt.
- The vulcanised Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.
- The belt will not catch fire from heat buildup, even with severe slippage.
- Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX.
- Meets RMA oil and heat resistant standards and static conductivity requirements.
- Up to 300% capacity increase over classical belts.
Informazioni tecniche
Attributi
| Profilo | spb |
|---|---|
| Larghezza superiore | 16 mm |
| Lunghezza di orientamento | 8500 mm |
| Lunghezza interna | 8440 mm |
| Lunghezza esterna | 8522 mm |
| Spessore | 13 mm |
| Guainato | sì |
| Serie | super hc |
| Min. Temperatura d'impiego | -30 °C |
| Max. Temperatura d'impiego | 60 °C |
| Diametro minimo della puleggia | 140 mm |
Mostra UNSPSC / ECL@SS
€ 155,08 IVA esclusa
/ Unità
€ 189,20 IVA inclusa
- Accedi/registrati per visualizzare i tempi di spedizione
