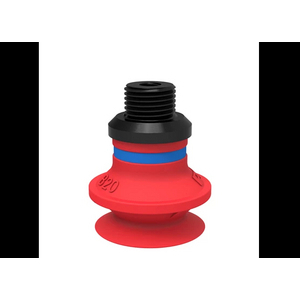

VENTOSA B20 SILICONE, G1/8 MASCHIO/M5 FEMMINA PA 0110336
VENTOSE
Vedi informazioni tecnicheVedi documentiRiferimenti
Piab:0110336
Rubix:170000000512864
Riepilogo info tecniche
| Materiale | silicone |
|---|---|
| Diametro | 22,2 mm |
| Forma | rotondo |
Documenti
Dettagli del prodotto : VENTOSA B20 SILICONE, G1/8 MASCHIO/M5 FEMMINA PA 0110336
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.
VENTOSA Serie:B Diametro:20 mm Forma:A SOFFIETTO Attacco:1/8" MASCHIO - M5 FEMMINA Materiale:SILICONE
Punti di forza
•Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates
The lifting movement can be used to separate small and thin objects
Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement
The lifting movement can be used to separate small and thin objects
Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement
Informazioni tecniche
Attributi
| Materiale | silicone |
|---|---|
| Diametro | 22,2 mm |
| Forma | rotondo |
Mostra UNSPSC / ECL@SS
€ 11,59 IVA esclusa
/ Unità
€ 14,14 IVA inclusa
Accedi/registrati per visualizzare i tempi di spedizione
