Dettagli del prodotto : 02172800-ARTICOLO PF2M725-F1-F

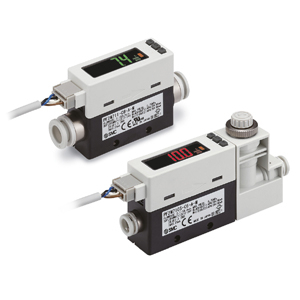

Digital flow switch with integrated display
Applicable fluid: Dry air, nitrogen, carbon dioxide, argon
2-colour display
Flow adjustment valve option
Flow ratio 100:1
Rated flow ranges: from 0.01 to 100 l/min
Output: PNP/NPN, analogue (voltage/current) and/or IO-Link
Repeatability: ±1.0% F.S.
Consumption: 35 mA or less.
Punti di forza
Applicable fluid: Dry air, nitrogen, carbon dioxide, argon
2-colour display
Flow adjustment valve option
Flow ratio 100:1
Rated flow ranges: from 0.01 to 200 l/min
Output: PNP/NPN or analogue (voltage/current)
Repeatability: ±1.0% F.S.
Straight or rear ported piping entry direction.
Informazioni tecniche
Attributi
| Tensione, min. | 12 V |
|---|---|
| Tensione, max. | 24 V |
| Temperatura minima | 0 °C |
| Temperatura massima | 50 °C |
Mostra UNSPSC / ECL@SS
€ 255,49 IVA esclusa
/ Unità
€ 311,70 IVA inclusa
Accedi/registrati per visualizzare i tempi di spedizione
