Riferimenti
SMC:CJ2B10-15Z
Rubix:999221025049897
EAN:3618035764452
Riepilogo info tecniche
| Diametro mandrino | 10 mm |
|---|---|
| Corsa del cilindro | 15 mm |
| Tipologia | cilindro d'aria |
Documenti

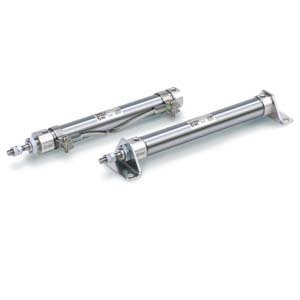

Dettagli del prodotto : 01068817-ARTICOLO CJ2B10-15Z
Round Air Cylinder, Single/Double Acting, Single/Double Rod, Non Rotating, Direct Mounting, and Built-in Speed Controller options.
Bore sizes (mm): 6, 10 and 16.
Strokes up to 400 mm.
Many head covers and mounting brackets available as standard.
Fine adjustment of the auto switch position by just loosening one screw.
2-colour indication solid state auto switches can be mounted.
Rubber bumper / Air cushion.
Many made to order available.
Bore sizes (mm): 6, 10 and 16.
Strokes up to 400 mm.
Many head covers and mounting brackets available as standard.
Fine adjustment of the auto switch position by just loosening one screw.
2-colour indication solid state auto switches can be mounted.
Rubber bumper / Air cushion.
Many made to order available.
C(D)J2-Z, cilindro pneumatico, doppio effetto, stelo semplice
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 12x89x13 mm |
|---|---|
| Peso | 34 g |
| Diametro mandrino | 10 mm |
| Corsa del cilindro | 15 mm |
| Tipologia | cilindro d'aria |
| Temperatura minima | -10 °C |
| Temperatura massima | 70 °C |
| Paese d'origine | CN |
Mostra UNSPSC / ECL@SS
