Riferimenti
Dormer:E2823/4
Rubix:160000001325438
EAN:7320760090015
Riepilogo info tecniche
| Tipologia | fori ciechi e passanti britannici |
|---|---|
| Con spray refrigerante | no |

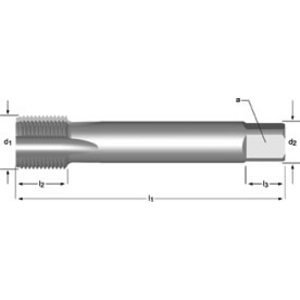

Dettagli del prodotto : MASCHI DIN HSS E2823/4
HSS-E Machine tap for gas thread uncoated DIN 5156 form C straight grooves 1.5xD blind and continual holes for general use in steel <1200 N/mm². Cast iron Copper and brass. Aluminium alloys and Duraplasts.
Tap MACHINE 3/4 BSP E282 HSCO DROIT GAZ DIN 5156
Applicazioni
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Duraplastics
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Duraplastics
Informazioni tecniche
Attributi
| Tipologia | fori ciechi e passanti britannici |
|---|---|
| Con spray refrigerante | no |
| Diametro del foro | 24,5 mm |
| Quadro di trascinamento | 20 mm |
| Lunghezza totale | 140 mm |
| Materiale del corpo | hss-e |
| Codice doganale | 82074010 |
Mostra UNSPSC / ECL@SS
€ 130,20 IVA esclusa
/ Unità
€ 158,84 IVA inclusa
