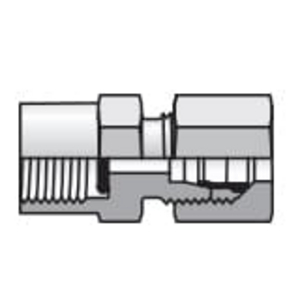

EO PRESSURE GAUGE CONNECTOR MAV06LRCF

Parker's in-line diagnostic tees are designed around the two most common hydraulic tube and hose interfaces: o-ring face seal (ORFS), Seal-Lok, and 37° flare JIC, Triple-Lok®. Developed to work in conjunction with electronic diagnostic products available from Parker's Quick Coupling Division and other mechanical pressure and temperature sensing equipment, this product line is designed to be installed to a hose assembly or tube line without displacing the port adapter.

Markets:
• Construction
• Mobile
• Agriculture
• Material Handling
• Machine Tool
• Oil & Gas
• MRO

Features/Benefits:
• ORFS and 37° flare swivel feature offers unlimited positioning without displacing port adapter.
• Enlarged and lengthened body hex ensures diagnostic port offers full thread engagement and pressure capability.
• Diagnostic tee product line includes: Diagnostic Test Point (EMA3 and PD Series), conversion adapter, and pressure gauge adapters.
• Available in steel in sizes ¼” through 1 ½” or 6mm through 38mm with working pressures up to 10,000 psi.

Applications:
• In-line pressure and temperature measurements
• In-line oil sampling
• In field diagnostic without removal of port adapters

Materiale corpo: Acciaio
Stile di connessione 1: Maschio 24° metrico senza flare con dado e ghiera
Connessione 1 Tubo O.d. (mm): 6L
Connessione 2 Stile: Femmina BSPP con rondella di tenuta
Dimensione filettatura attacco 2 (pollici): 1/4-19
Tipo di connessione: Adattatore manometro BSPP
Divisione: Divisione Raccordi per tubi
Pressione dinamica massima: 4500
Pressione statica massima: 4500
Materiale O-ring: NBR
