Riferimenti
Enerpac:BRC46
Rubix:999190200023891
Produttore:BRC46
EAN:0662005858101
Riepilogo info tecniche
| Altezza di elevazione | 441 mm |
|---|---|
| Corsa del cilindro | 140 mm |
| Diametro mandrino | 42,9 mm |
Documenti

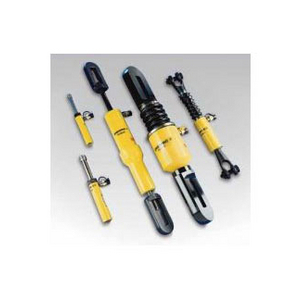

Dettagli del prodotto : CILINDRO ENERPAC BRC46 BRC46
BRC-Series Hydraulic Pull Cylinders include threads on the collar, plunger, and base to affix optional attachments such as chains, saddles and extension tubes. Enerpac optional accessories include the Foot Mount, Flange Mount, and Clevis Eye. Pull cylinders in the BRC series are single-acting spring return. They feature plunger blow-out protection and a hard chrome-plated plunger for corrosion resistance. Typical applications include cable and bar tensioning or other pulling applications. Every Enerpac BRC Series Pull Cylinder for sale is rated for 10,000 psi (700 bar) and fully complies to ASME B30. 1
Punti di forza
•High strength alloy steel construction
Plunger blow-out protection to prevent over-extension
Hard chrome-plated plunger for long life
CR400 coupler and dust cap included on all models
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
Single-acting spring return
Plunger blow-out protection to prevent over-extension
Hard chrome-plated plunger for long life
CR400 coupler and dust cap included on all models
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
Single-acting spring return
Informazioni tecniche
Attributi
| Altezza di elevazione | 441 mm |
|---|---|
| Corsa del cilindro | 140 mm |
| Diametro mandrino | 42,9 mm |
| Capacità dell'olio | 101 cm³ |
| Modello | brc |
| Codice doganale | 84254200 |
Mostra UNSPSC / ECL@SS
€ 1289,79 IVA esclusa
/ Unità
€ 1573,54 IVA inclusa
- Accedi/registrati per visualizzare i tempi di spedizione
