Riferimenti
Enerpac:BRP106C
Rubix:999190200023903
EAN:0662005306558
Riepilogo info tecniche
| Altezza di elevazione | 751 mm |
|---|---|
| Corsa del cilindro | 150 mm |
| Diametro mandrino | 54,1 mm |
Documenti

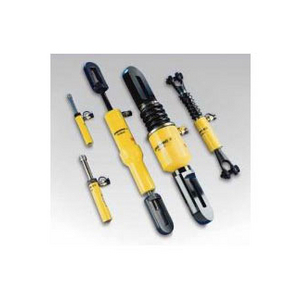

Dettagli del prodotto : PULLPAC CYLINDER BRP106C
BRP-Series Hydraulic Pull Cylinders include replaceable links or lugs which allow for easy attachment to the pulling application. These are a single-acting spring return design, and feature plunger blow-out protection and a corrosion resistant hard chrome-plated plunger. Typical applications include cable and bar tensioning or other pulling applications. Every Enerpac BRP Series Pull Cylinder for sale is rated for 10,000 psi (700 bar) and fully complies to ASME B30. 1
Punti di forza
•High strength alloy steel construction
Plunger blow-out protection to prevent over-extension
Hard chrome-plated plunger for long life
CR400 coupler and dust cap included on all models
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
Single-acting spring return
Replaceable links
Plunger blow-out protection to prevent over-extension
Hard chrome-plated plunger for long life
CR400 coupler and dust cap included on all models
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
Single-acting spring return
Replaceable links
Informazioni tecniche
Attributi
| Altezza di elevazione | 751 mm |
|---|---|
| Corsa del cilindro | 150 mm |
| Diametro mandrino | 54,1 mm |
| Capacità dell'olio | 238 cm³ |
| Modello | brp |
| Codice doganale | 84254200 |
Mostra UNSPSC / ECL@SS
€ 3478,30 IVA esclusa
/ Unità
€ 4243,53 IVA inclusa
Accedi/registrati per visualizzare i tempi di spedizione
