Cuscinetto a rulli conici Timken JP13049A/JP13010, Diametro esterno: 185 mm | Diametro interno: 130 mm | Larghezza: 27 mm
Tapered Roller Bearings
Vedi informazioni tecnicheVedi documentiRiferimenti
Timken:JP13049A/JP13010
Rubix:999220531029232
EAN:0053893653846
Riepilogo info tecniche
| Diametro interno | 130 mm |
|---|---|
| Diametro esterno | 185 mm |
| Larghezza | 27 mm |
Documenti
Dettagli del prodotto : CUSCINETTO JP13049A/JP13010

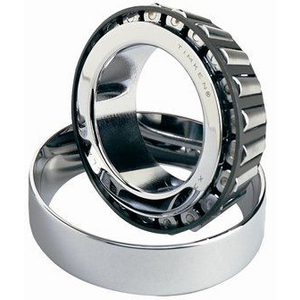

Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Punti di forza
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Applicazioni
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 197x197x52 mm |
|---|---|
| Peso | 2020 g |
| Imballaggio (Prof. x Largh. x Alt.) | 197x197x52 mm |
| Peso imballaggio | 2020 g |
| Diametro interno | 130 mm |
| Diametro esterno | 185 mm |
| Larghezza | 27 mm |
| Serie | jp13000 |
| Gabbia | acciaio |
| Norma | iso |
| Carico statico di base, radiale - C0r | 283000 N |
| Carico dinamico di base, radiale - Cr | 196000 N |
| Codice doganale | 84822000 |
