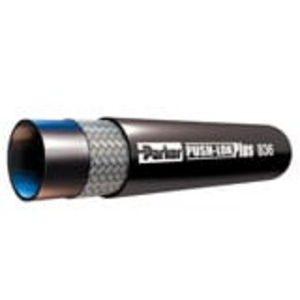

PARKER 836 HI-TEMP PUSH-LOK HO 836-12-RL

Compatible with more fluids, applications and fittings than other hoses in the Push-Lok Plus product line, Parker’s 836 hose is a multipurpose, low pressure hose offering higher temperature and pressure ratings and a greater range of I.D. sizes. 836 hoses also feature the time- and cost-saving Push-Lok technology, which allows for quick, on-the-job assembly without need for clamps or special tools.

The unique Push-Lok seal also ensures reliable, durable, and leak-free service. 836 hoses offer working pressures between 300 and 400 PSI, and high temperature ratings up to 185°F for water, 212°F for air, and 302°F for oil applications. Noted for their wide fluid compatibility, 836 hoses can be used in many low-pressure media applications, including diesel fuel. Compatible with Parker’s HY Series crimp fittings and its 82 Series field attachable fittings, 836 hoses accommodate the widest range of fittings in the industry. Offered in an array of colors, 836 hoses are available with I.D. sizes ranging from ¼-inch to ¾-inch.


Markets:
• Construction
• Utility Equipment
• Machine Tool
• Ground Support Equipment
• Industrial
• Automotive

Features/Benefits:
• 300-400 PSI working pressure in different sizes
• Easy assemblies that can be made in seconds, saving valuable time and cost
• Organization with Parker's exclusive color-coding system
• Unique seal for a durable leak-free service

Applications:
• Petroleum base hydraulic fluid and lubricating oils
• Pneumatic
• Antifreeze solutions
• Diesel fuel

Compatible Fittings:
• 82 series fittings
• HY series fittings

Applicazioni: Pneumatica, fluidi idraulici a base di petrolio, oli lubrificanti, carburanti diesel, soluzioni antigelo
Colore: blu
Fitting compatibili: Serie HY, Serie 82
Materiale di copertura: Gomma PKR®, approvato MSHA
Fattore di progettazione: n/a
Divisione: Divisione prodotti per tubi flessibili
Identità del tubo (dimensioni): -12
Materiale tubo interno tubo: Gomma PKR®
Materiale di rinforzo del tubo: 1 treccia di fibra
Diametro interno: 3/4, 19
Pressione massima di esercizio: 300, 2,1
Temperatura massima di esercizio: 212 °F (aria), 100 °C (aria), 185 °F (acqua), 85 °C (acqua), 302 °F (olio), 150 °C (olio)
Media: Aria (Aria compressa con tracce di olio), Refrigeranti, Carburanti - Verificare il tipo di carburante con la nostra tabella di catalogo.., Lubrificanti, Fluidi idraulici petroliferi
Raggio minimo di curvatura: 6, 150
Temperatura minima di esercizio: -55 °F (olio), -48 °C (olio)
Diametro interno del tubo nominale: 19
Diametro esterno: 1,030, 26,2
Dimensioni: -12
Specifiche Met: n/a
Pressione di vuoto nominale: 18, 457
Peso: 0,24, 0,36
