GUARNIZIONE 10,820 X 1,680 X 1,680 MM DKAR00013-N9011
Kantseal
Vedi informazioni tecnicheVedi documentiRiferimenti
Trelleborg:DKAR00013-N9011
Rubix:999190900048232
Riepilogo info tecniche
| Diametro interno | 10,82 mm |
|---|---|
| Diametro della sezione | 1,68 mm |
| Durezza Shore A | 90 Shore |
Documenti
Dettagli del prodotto : GUARNIZIONE 10,820 X 1,680 X 1,680 MM DKAR00013-N9011

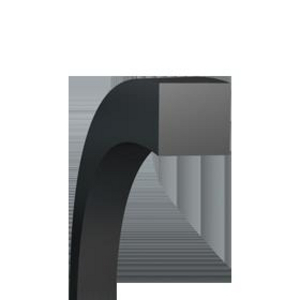

The Kantseal is a good alternative to the O-Ring as an axial static seal in cases where particular demands are made. Their application and handling is comparable with those of O-Rings. It is used as a static seal so that the square form remains practically constant even under high pressures.
KANTSEAL Diametro Interno Guarnizione: 10.82 mm Altezza Guarnizione: 1.68 mm Materiale: NBR
Punti di forza
•High resistance to extrusion, not sensitive to gap extrusion•Minimum mechanical deformation of the cross-section•Outstanding sealing behavior over long periods•Good compression set•no twisting in the groove•No relative movements during pressure cycles•Dimensionally stable under pressure•No additional Back-up Ring required•no parting line or flash on the seal•long service life•High leak tightness
Applicazioni
Flanges;valves;plates and locks
Informazioni tecniche
Attributi
| Diametro interno | 10,82 mm |
|---|---|
| Diametro della sezione | 1,68 mm |
| Durezza Shore A | 90 Shore |
| Materiale | nbr |
| Codice doganale | 40169300 |
Mostra UNSPSC / ECL@SS
€ 4,31 IVA esclusa
/ Unità
€ 5,26 IVA inclusa
- Disponibile: spedito entro 24 ore
