Riferimenti
SMC:KQ2VS06-02AS
Rubix:999180300036266
Produttore:00983742
EAN:3618036042979
Documenti

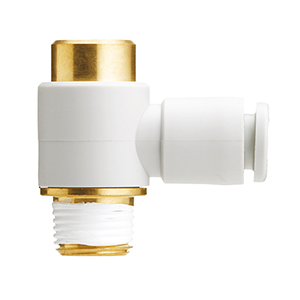

Dettagli del prodotto : 00983742-RACCORDO ISTANTANEO KQ2VS06-02AS
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
KQ2VS, raccordo istantaneo colore bianco - Gomito d'estremità con testa ad esagono incassato
Punti di forza
Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Informazioni tecniche
Attributi
| Peso | 22 g |
|---|---|
| Materiale | a (ottone) |
| Connessione 1 | 1/4 |
| Connessione 2 | 6 |
Mostra UNSPSC / ECL@SS
€ 5,04 IVA esclusa
/ Unità
€ 6,15 IVA inclusa
- Accedi/registrati per visualizzare i tempi di spedizione
