Cuscinetto a rulli conici Timken 632, Diametro esterno: 136.525 mm | Larghezza: 31.75 mm
Tapered Roller Bearings
Vedi informazioni tecnicheVedi documentiRiferimenti
Timken:632
Rubix:999180400103531
Produttore:100032040
EAN:0053893070957
Riepilogo info tecniche
| Diametro esterno | 136,525 mm |
|---|---|
| Larghezza | 31,75 mm |
| Gioco dei cuscinetti | cn |
Documenti

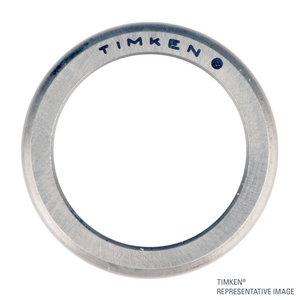

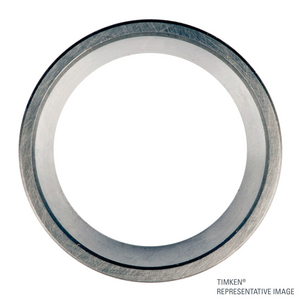

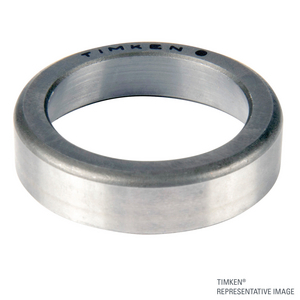

Dettagli del prodotto : TAPERED ROLLER BEARINGS CUP 632
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Punti di forza
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Applicazioni
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 142x142x49 mm |
|---|---|
| Peso | 980 g |
| Imballaggio (Prof. x Largh. x Alt.) | 141,732x141,732x49,022 mm |
| Peso imballaggio | 974,8 g |
| Diametro esterno | 136,525 mm |
| Larghezza | 31,75 mm |
| Gioco dei cuscinetti | cn |
| Serie | 635 |
| Norma | iso |
