Cuscinetto a rulli conici Timken 1997X, Diametro interno: 26.988 mm | Larghezza: 19.355 mm
Timken Tapered Roller Bearing 1900 - Single Cone
Vedi informazioni tecnicheRiferimenti
Timken:1997X
Rubix:999200400083210
Produttore:100205217
EAN:0053893108278
Riepilogo info tecniche
| Diametro interno | 26,988 mm |
|---|---|
| Larghezza | 19,355 mm |
| Gioco dei cuscinetti | cn |

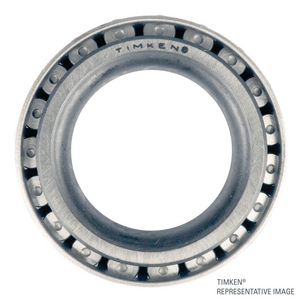

Dettagli del prodotto : TAPERED ROLLER BEARING CONE 1997X
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Punti di forza
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Applicazioni
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 19,355x42,469x42,469 mm |
|---|---|
| Peso | 148 g |
| Imballaggio (Prof. x Largh. x Alt.) | 59,182x59,182x25,146 mm |
| Peso imballaggio | 148,3 g |
| Diametro interno | 26,988 mm |
| Larghezza | 19,355 mm |
| Gioco dei cuscinetti | cn |
| Peso | 0,3 kg |
| Serie | 1900 |
| Gabbia | acciaio |
| Larghezza totale del cuscinetto | 19,845 mm |
| Carico statico di base, radiale - C0r | 50200 N |
| Carico dinamico di base, radiale - Cr | 12500 N |
| Codice doganale | 84822000 |
