Cuscinetto a rulli conici Timken 592XS, Diametro esterno: 147.638 mm | Diametro interno: 82.55 mm | Larghezza: 26.192 mm
Tapered Roller Bearing Cup
Vedi informazioni tecnicheRiferimenti
Timken:592XS
Rubix:999200400091236
Produttore:100126864
EAN:0053893064888
Riepilogo info tecniche
| Diametro interno | 82,55 mm |
|---|---|
| Diametro esterno | 147,638 mm |
| Larghezza | 26,192 mm |

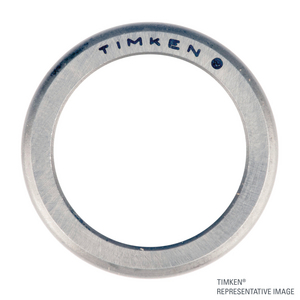

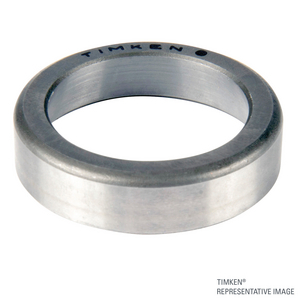

Dettagli del prodotto : TAPERED ROLLER BEARINGS CUP 592XS
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Punti di forza
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Applicazioni
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 26,192x147,638x147,638 mm |
|---|---|
| Peso | 595 g |
| Imballaggio (Prof. x Largh. x Alt.) | 154,432x154,432x39,116 mm |
| Peso imballaggio | 595,1 g |
| Diametro interno | 82,55 mm |
| Diametro esterno | 147,638 mm |
| Larghezza | 26,192 mm |
| Gioco dei cuscinetti | cn |
| Peso | 2,1 kg |
| Serie | 595 |
| Larghezza totale del cuscinetto | 35,717 mm |
| Carico statico di base, radiale - C0r | 319000 N |
| Carico dinamico di base, radiale - Cr | 216000 N |
| Codice doganale | 84822000 |
Mostra UNSPSC / ECL@SS
