Cuscinetto a rulli conici Timken M88043, Diametro interno: 30.163 mm | Larghezza: 22.225 mm
Tapered Roller Bearings
Vedi informazioni tecnicheRiferimenti
Timken:M88043
Rubix:999200400100701
Produttore:100025549
EAN:0053893427850
Riepilogo info tecniche
| Diametro interno | 30,163 mm |
|---|---|
| Larghezza | 22,225 mm |
| Gioco dei cuscinetti | cn |

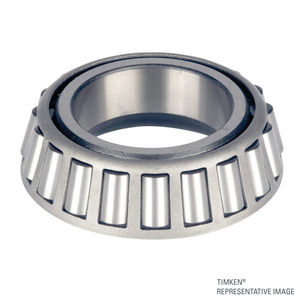

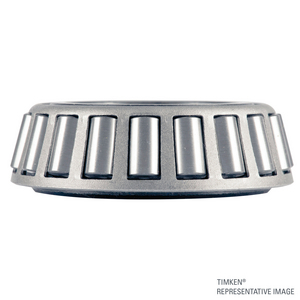

Dettagli del prodotto : TAPERED ROLLER BEARING CONE M88043
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Punti di forza
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Applicazioni
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 73x28x73 mm |
|---|---|
| Peso | 260 g |
| Imballaggio (Prof. x Largh. x Alt.) | 71,374x71,374x26,924 mm |
| Peso imballaggio | 255,8 g |
| Diametro interno | 30,163 mm |
| Larghezza | 22,225 mm |
| Gioco dei cuscinetti | cn |
| Peso | 0,4 kg |
| Serie | m88000 |
| Gabbia | acciaio |
| Larghezza totale del cuscinetto | 22,225 mm |
| Norma | din 720 |
| Carico statico di base, radiale - C0r | 77400 N |
| Carico dinamico di base, radiale - Cr | 76300 N |
| Codice doganale | 84822000 |
