Cuscinetto a rulli conici Timken L45449/L45410, Diametro esterno: 50.292 mm | Diametro interno: 28.999 mm | Larghezza: 14.732 mm
Tapered Roller Bearings
Vedi informazioni tecnicheVedi documentiRiferimenti
Timken:L45449/L45410
Rubix:999200400099151
EAN:0053893003603
Riepilogo info tecniche
| Diametro interno | 28,999 mm |
|---|---|
| Diametro esterno | 50,292 mm |
| Larghezza | 14,732 mm |
Documenti

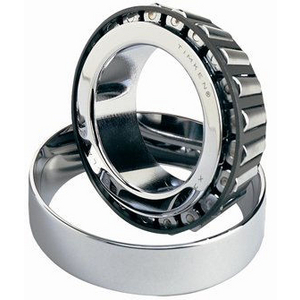

Dettagli del prodotto : TAPERED ROLLER BEARING ASSEMBLY L45449-9X061
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Punti di forza
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Applicazioni
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Informazioni tecniche
Attributi
| Dimensioni logistiche (Prof. x Largh. x Alt.) | 59x59x25 mm |
|---|---|
| Peso | 110 g |
| Imballaggio (Prof. x Largh. x Alt.) | 59x59x25 mm |
| Peso imballaggio | 110 g |
| Diametro interno | 28,999 mm |
| Diametro esterno | 50,292 mm |
| Larghezza | 14,732 mm |
| Serie | l45400 |
| Gabbia | acciaio |
| Larghezza totale del cuscinetto | 14,224 mm |
| Norma | iso |
| Carico statico di base, radiale - C0r | 36200 N |
| Carico dinamico di base, radiale - Cr | 35500 N |
| Codice doganale | 84822000 |
