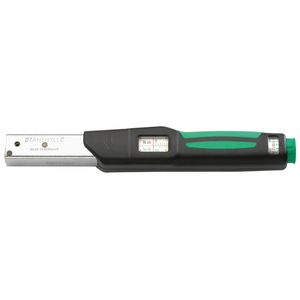

0150181102-730N/ 2 CHIAVE DINAMOM.QUICK SELECT 730N/2 4-20 NM
Torque Wrench Service Manoskop® with Receptacle for Insert Tools
Vedi informazioni tecnicheRiferimenti
Stahlwille:50181102
Rubix:999190200031398
Produttore:730N/2 4-20 NM
EAN:4018754295234




Riepilogo info tecniche
| Coppia di serraggio minima | 4 N.m |
|---|---|
| Coppia di serraggio, massima | 20 N.m |
| Lunghezza | 275 mm |
Dettagli del prodotto : 0150181102-730N/ 2 CHIAVE DINAMOM.QUICK SELECT 730N/2 4-20 NM
Punti di forza
•Click-type
Fast, accurate setting thanks to QuickSelect quick-action adjuster
Dual stop signal
Easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales
The measuring element is only under load while force is being applied, no need for manual reset to zero
Any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw -does not act on the trigger mechanism and cannot cause damage to it
Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)
Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
With certificate
Supplied in textile bag
Registered design
Mount for interchangeable insert tools
QuickRelease safety lock
Can be applied for either clockwise or anticlockwise tightening by turning the inserts over
Fast, accurate setting thanks to QuickSelect quick-action adjuster
Dual stop signal
Easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales
The measuring element is only under load while force is being applied, no need for manual reset to zero
Any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw -does not act on the trigger mechanism and cannot cause damage to it
Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)
Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
With certificate
Supplied in textile bag
Registered design
Mount for interchangeable insert tools
QuickRelease safety lock
Can be applied for either clockwise or anticlockwise tightening by turning the inserts over
Informazioni tecniche
Attributi
| Coppia di serraggio minima | 4 N.m |
|---|---|
| Coppia di serraggio, massima | 20 N.m |
| Lunghezza | 275 mm |
| Fissaggio | 9x12 mm |
| Norma | din en iso 6789-2:2017 |
Mostra UNSPSC / ECL@SS
€ 295,10 IVA esclusa
/ Unità
€ 360,03 IVA inclusa
